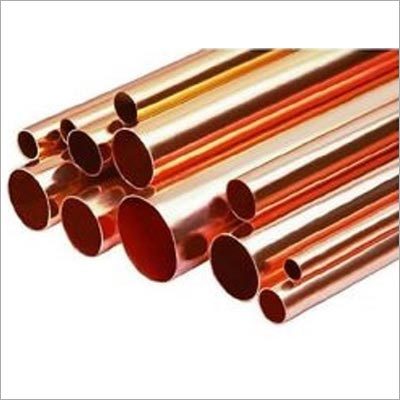

Copper Nickel Pipes
500.00 - 800.00 INR/Piece
Product Details:
X
Copper Nickel Pipes Price And Quantity
- 500 Kilograms
- 500.00 - 800.00 INR/Piece
Copper Nickel Pipes Trade Information
- 5000-10000 Kilograms Per Week
- 2 Week
Product Description
These Cupro Nickel tubes & pipes for Marine application are very important for all Industrial fields. The company has experience in these areas and is able to supply these tubes in accordance with most international standards and special customer requirements. Chemical Composition
| Classification | Class | Chemical Composition (%) | Related Standards | ||||||||||||||||
| Cu | Zn | Pb | Fe | P | Sn | Ni | Mn | Al | As | Other | ISS | KS | JIS | ASTM | BS | DIN | |||
| Tough Pitch Copper | 1 | 99.9 min | ETP | D 5301 C1100 | H 3300 C1100 | B 188 C 11000 | 2871 C101 C102 | 1787 ECU58 ECU57 | |||||||||||
| Phosphorus Deoxidized Copper | Low Residual | 99.9 min | 0.004- 0.012 | DLP | D 5301 C1201 | H 3300 C 1201 | B 75 C 12000 | 2871 C106 | 1787 SW-CU | ||||||||||
| High Residual | 99.9 min | 0.015- 0.040 | DHP | C1220 | C1220 | C12200 | C106 | SF-CU | |||||||||||
| Phosphorus Deoxidized Arsenic Copper | High Residual | 99.9 min | 0.015- 0.040 | 0.015- 0.040 | DPA | C1420 | C1420 | C14200 | C107 | CuAsp | |||||||||
Mechanical Properties
| Classification | Temper | Designation | Tensile Test | Hardness Test | |||||
| Outside diameter (mm) | Thickness (mm) | Tensile Strength Kgf/mm2 | Elongation (%) | Thickness | Rockwell Hardness | ||||
| HR30T | HR15T | ||||||||
| Tough Pitch Copper | 0 | C11000 | 5-150 | 0.5-30 | 26max | 25min | 50max | - | |
| 1/2H | 5-150 | 0.5-25 | - | - | - | - | |||
| H | 5-100 | 0.5-6 | 23-28min | 3-20min | 65-80min | - | |||
| 40min | 0.4min | - | 60max | ||||||
| Phosphorus Deoxidized Copper Phosphorus Deoxidized | 0 | C12000 | 4-150 | 0.3-30 | 21min | ||||
| 0L | 4-150 | 0.3-30 | 21min | 40min | 0.4min | - | 60max | ||
| 1/2H | 4-150 | 0.3-25 | 25-33 | 30-60 | - | ||||
| H | C12200 | 4-150 | 0.3-6 | 32min | 55min | - | |||
| 0 | C14200 | 4-150 | - | 21min | - | - | |||
| 1/2H | 4-150 | - | 25-33 | - | - | ||||
| Arsenic Copper | H | 4-150 | 0.3-6 | 32min | |||||
